Allied Ejecto Sewage Ejector

Features

Economical
Factory Assembled Package
Full 3″ Screenless Non-Clog
Passes Through 30″ Doorway
3 Water Closet Capability
Low Cost Trouble-Free Operation
For That Extra Playroom or Basement Bathroom
Will Pump All Matter Which Passes Through:
Garbage Disposal, Sink, Laundry Tray, Water Closet, Waste Line

Capacity GPM	Head in Feet	Horse Power
25	25	3/4
75	20
115	15
140	10

The Allied “Ejecto” is an efficient, economical packaged sewage pump designed primarily for “that extra set of fixtures” which are located such that gravity drainage is not possible nor practical. The entire unit will pass through a 30″ doorway

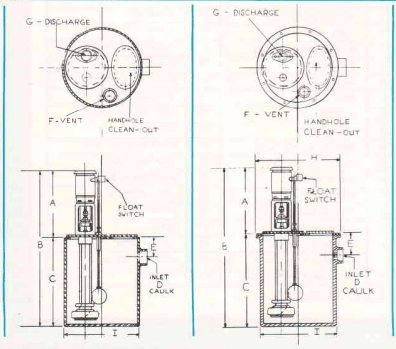

DIMENSIONS-INCHES

	SINGLE	DUPLEX
A	21	21
B	58	58
C	31	31
D	4	4
E	8	8
F	3	3
G	3	3
H	-	-
I	27	32

Equipment Features

Pump: Non-clog sewage pump with full 3″ discharge. Has bronze lower sleeve bearing and ball thrust bearing in cast iron motor pedestal perfectly aligned to eliminate all vibration. 2-vane back shrouded impeller with pump-out vanes is designed to pass all sewage and stringy material and eliminate binding at the back. Pump and motor are connected with a flexible coupling which insures quiet operation.

Motor: Standard NEMA frame of a major manufacturer 3/4 HP, 1750 RPM. All single phase, 60 cycle, 115/230 volt motors have built in thermal overload and are of the capacitor type. Three phase motors, when furnished, include magnetic starters of overload protection.

Shaft: The pump shaft is made of a high grade stainless steel, ground and polished, and is of a large diameter designed for high torque. The pump shaft is made of a high grade stainless steel, ground and polished, and is of a large diameter designed for high torque.

Basin: A heavy duty steel basin is furnished as standard. The basin is treated with a corrosion resistant coating. Cast iron basins can be furnished and are recommended only in installations with severe sub-surface water conditions. Basins are provided with a 4″ caulk inlet, 3″ vent, and a large removable hand hole to permit access, as a standard. The pump and motor can be removed without disturbing the basin cover.

Control: An integral float switch assembly is furnished. The float switch assembly is complete with a large diameter copper float, brass float rod and adjustable float stops. The duplex “Ejecto” can be furnished with an alternating float switch

Allied SE Sewage Ejector

Features

Single or Duplex
Heavy, Duty, Non-Clog
Pump-Out-Vanes
Steel and Cast Iron Basins
Pit Covers and Pit Frames
Trouble Free Operation

The Allied “SE” is a heavy duty non-clog type sewage ejector, engineered and built to meet the requirements of pumping sewage and similar unscreened liquids containing suspended solids wheel gravity drainage is not practical nor possible. The “SE” is economical and dependable and is capable of handling both hot and cold waste

1	PUMP CASING
2	IMPELLER
3	IMPELLER NUT
4	IMPELLER KEY
5	SUCTION PLATE
6	SUCTION PLATE BOLTS
7	LOWER BEARING
8	SUPPORT LEG BET SCREW
9	SUPPORT LEG
10	SHAFT
11	BEAL
12	BALL BEARING
13	BEARING CAP
14	BEARING CAP SET SCREW
15	BEARING LOCK NUTS
16	GREASE CUP
17	PEDESTAL
18	SUPPORT PLATE
19	DISCHARGE PIPE
20	EXPANSION JOINT
21	DISCHARGE PIPE FLANGE
22	DISCHARGE FLANGE PACKING
23	FLANGE SET SCREWS

24	FLANGE BOLTS
25	PEDESTAL MOUNTING BOLTS
26	FLOAT SWITCH
27	FLOAT STOPS
28	STOP SET SCREW
29	FLOAT ROD
30	FLOAT
31	FLOAT SWITCH BRACKET
32	GUIDE PIPE
33	GUIDE PIPE LOCK NUT
34	STUFFING BOX CAP
35	PUMP COUPLING HALF
36	COUPLING SPIDER
37	MOTOR COUPLING HALF
38	PUMP SHAFT KEY
39	MOTOR SHAFT KEY
40	MOTOR MOUNTING BOLTB
41	MOTOR
42	BABIN
43	ACCESS COVER
44	ACCESS COVER BOLTS
45	VENT

Equipment Features

Casing: Close grained cast iron volute with large smooth rounded passages designed to handle unscreened sewage and liquids with stringy or large solids which will pass through the impeller. The volute and discharge port are a one piece casting.

Impeller: Two-vane, one piece construction, with pump-out vanes on back shroud, dynamically balanced, reduces back pressure on the lower bearing and permits long life. Rags and stringy material along with solids in liquid suspension are easily handled by this non-clog impeller.

Shaft: Steel, high tensile strength, turned, ground, and polished of ample diameter for maximum speed operation without vibration. The shaft is provided with a micrometer adjustment at the thrust bearing to permit proper centering of impeller in casing. Stainless steel shafts can be furnished to meet particular requirements.

Shaft Column: Flanged, heavy wrought steel pipe encases the pump shaft. Installed from underside of pump support plate to top of pump casing, accurately registered to maintain rigid and permanent alignment with any shaft length.

Discharge Pipe: Seamless steel, supported at the pump support plate and furnished with an expansion fitting at the casing connection to prevent strain on the pump. Standard construction includes the discharge pipe extending through the support plate above grade. Below grade discharge connections are also available.

Support Plate: Heavy steel, supports the entire ejector. The discharge pipe flange is bolted to the support plate to prevent piping strain transmission to the pump volute. The support plate permits the entire unit to b installed or removed without disturbing other equipment mounted on the same cover.

Thrust Bearing: A sealed, heavy duty, ball thrust bearing in a moisture and dust proof housing is elevated above the pump support plate. The thrust bearing has ample capacity to support the weight of the shaft and impeller.

Intermediate Bearings: Bronze lower and intermediate guide bearings are spaced to restrain shaft deflection thereby eliminating vibration. Other materials than bronze can be furnished for special applications.

Lubrication: Each bearing is furnished with an individual grease line and pressure grease fitting. All grease fittings are installed on top of the pump support plate.

Flexible Coupling: Properly selected for specific horsepower and speed, and is accurately machined and balanced.

Motor: Of well known motor manufacturers standard NEMA construction are furnished and selected for quiet operation.

Specification Aid For Architects Or Engineers

Furnish and install where shown on plans an Allied Pump Corp.SE model _____ (simplex) (duplex) vertical wet pit
type centrifugal sewage pump (s). (Each) pump shall be rated to deliver _____ GPM against a TDH of _____ ft.
Casing (s) shall be close grained cast iron with volute and discharge port as a one piece casting. Impeller (s) shall be two-vane, one piece construction, dynamically balanced, with pump-out vanes on the back shroud designed to reduce pressure on the lower bearing (s). Thrust bearing (s) shall be ball type mounted in elevated dust and moisture proof housing (s). Shaft (s) shall be carbon steel supported by grease lubricated renewable bronze guide bearings.

Motor (s) shall be _____ HP, _____ Rpm, _____ phase, _____ cycle, _____ volts, drip protected, ball bearing.

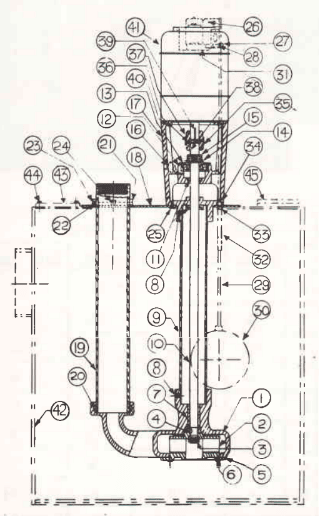

View Showing Identifying Parts

Controls And Accessories

(FOR SIMPLEX) Furnish a float switch assembly mounted on a cast iron pedestal complete with copper float, guided float rod, and adjustable stops.

(FOR DUPLEX) Furnish an alternating float switch assembly to alternate the sequence of operation of the two pumps and provide for emergency simultaneous operation of both pumps during peak loads. Switch shall be mounted on a cast iron pedestal and be complete with copper float, guided float rod, and adjustable stops.

Furnish a compression type high water alarm assembly com- plete with compression tube and alarm horn.

Furnish magnetic starter (s) in NEMA 1 enclosure providing thermal overload protection.

Furnish a (cast iron) (steel) sewage basin _____ dia x _____ deep.

Basin shall be complete with gastight steel cover having opening (s) for pump (s) control (s) and include vent connection and gasketed access opening.

(FOR CONCRETE PIT) Furnish for concrete pit _____ X _____ X _____ a welded angle iron frame with gasketed steel cover. Cover shall have opening (s) for pump (s) control (s) and include vent connection and gasketed access opening.

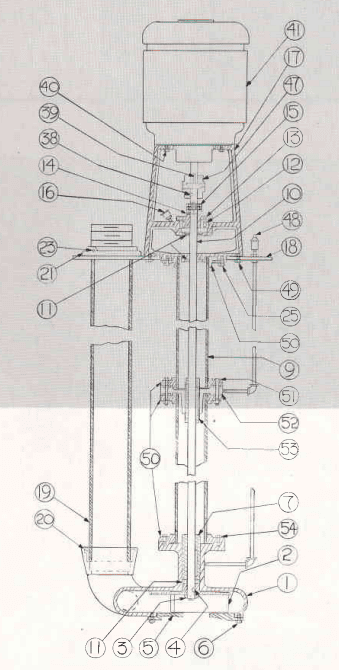

1	PUMP CASING
2	IMPELLER
3	IMPELLER NUT
4	IMPELLER KEY
5	SUCTION PLATE
6	SUCTION PLATE BOLTS
7	LOWER BEARING
9	SUPPORT LEG
10	SHAFT
11	SEAL
12	BALL BEARING
13	BEARING CAP
14	BEARING CAP SET SCREW
15	BEARING LOCK NUTS
16	GREASE CUP
17	PEDESTAL
18	SUPPORT PLATE

19	DISCHARGE PIPE
20	EXPANSION JOINT
21	DISCHARGE PIPE FLANGE
23	FLANGE SET SCREWS
25	PEDESTAL MOUNTING BOLTS
38	PUMP SHAFT KEY
39	MOTOR SHAFT KEY
40	MOTOR MOUNTING BOLTS
41	MOTOR
47	FLEXABLE COUPLING
48	GREASE FITTINGS
49	SUPPORT PLATE BOLTS
50	SUPPORT PLATE FLANGE
51	INTERMEDIATE BOLTS
52	INTERMEDIATE HOUSING
53	INTERMEDIATE BEARING
54	LOWER FLANGE BOLTS

Data

SUMP DEPTH	E - INCHES
3'0" - 8'0"	5
8'6" - 12'0"	6

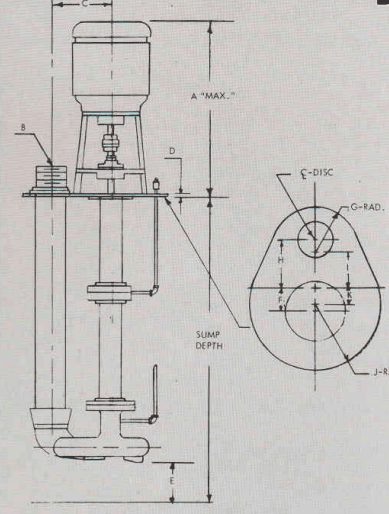

MOTOR FRAME	DIMENSIONS - INCHES
	A	B	C	D	F	G	H	I	J	K
56	24
182	25½
184-213	27	4	9 3⁄4	3/8	3 1⁄8	6	6-5/8	5	9	2 1⁄4
215	27½
254-256	31½

Covers

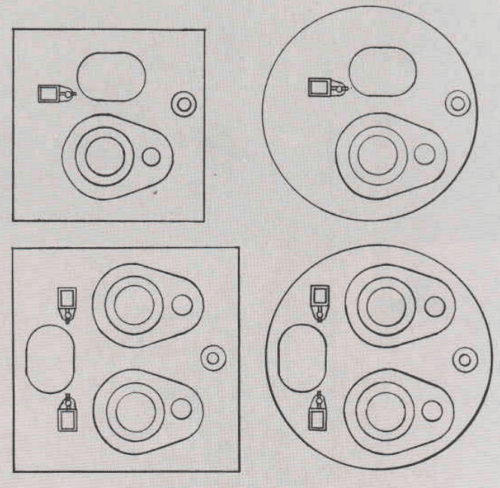

Details indicate typical Single and Duplex SE orientations. Round covers are normal to cast iron and steel sewage basins. Rectangular covers are normal to concrete pits and are usually furnished with frames.

Minimum Pit And Basin Sizes

ROUND		RECTANGULAR
SINGLE	DUPLEX	SINGLE	DUPLEX
30 " Dio	42" Dio	30 "x30 "	42"x42"
